PVR1T Corner Radius End Mill For Titanium / Inconel Alloy
For Titanium / Inconel Alloy, PVR1T Corner Radius End Mill，Diameter：4mm~20mm，Coating：Zirconia + AlTiBN
-
Literature

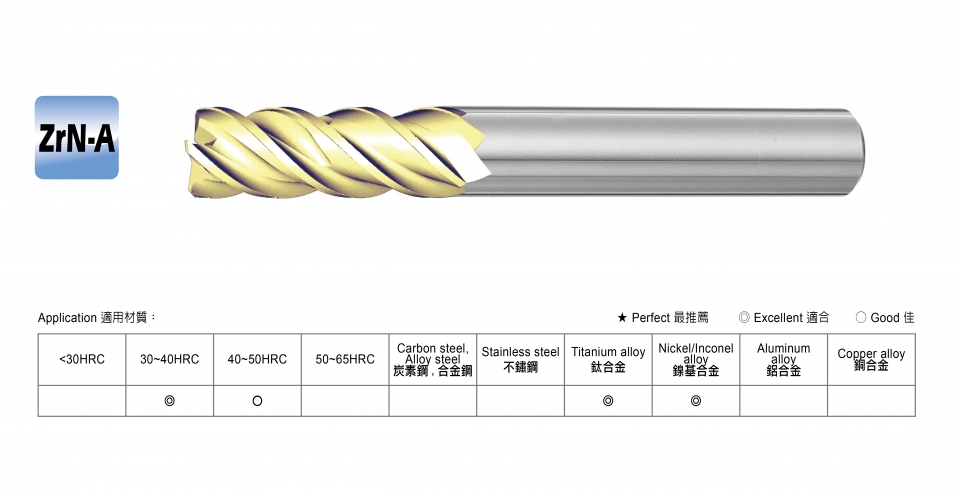

Application
◎ ExcellentITEM 30HRC 30~40HRC 40~50HRC Carbon steel,
Alloy steelTitanium alloy Nickel/
Inconel alloyAluminium alloy Copper alloy PVR1T ◎ ○ ◎ ◎
○ Good
Cutting Video

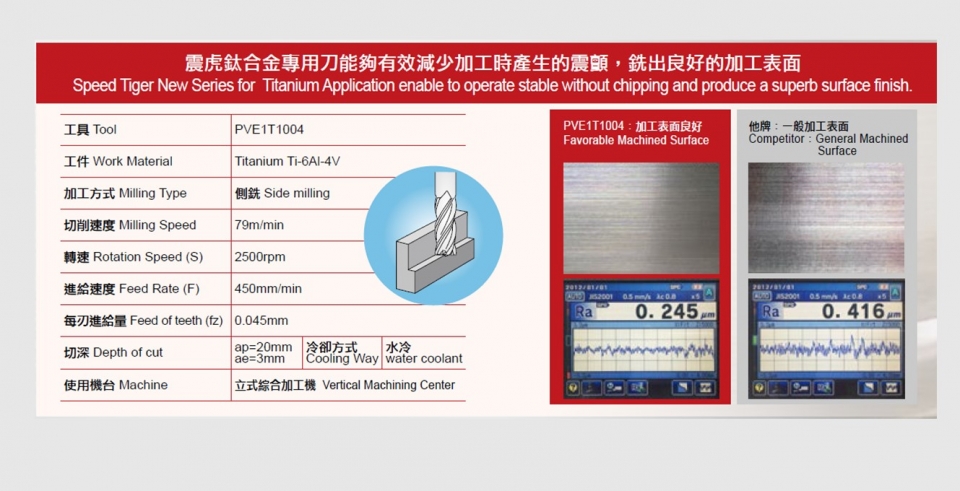

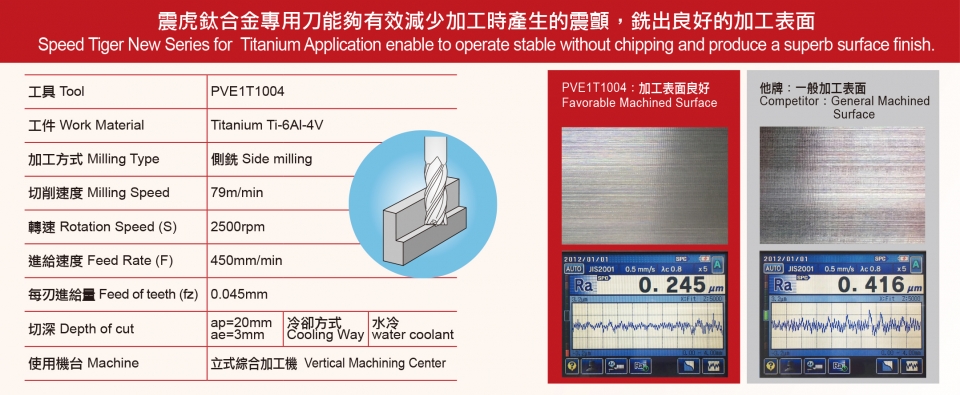

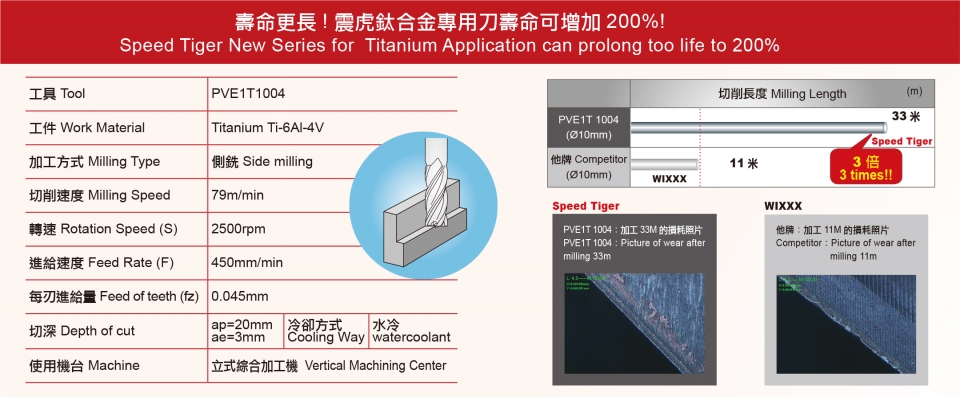

Cutting condition
Mode: PVE1T1004
Work material: Titanium Ti-6A1-4V
First Stage:
Vc: 79m/min
S: 2500rpm
fz:0.045
F:450
ap:20mm
ae:3.0mm
Second Stage:
Vc: 90m/min
S: 2866rpm
fz: 0.006
F: 687
ap: 20mm
ae: 1.0mm
Features

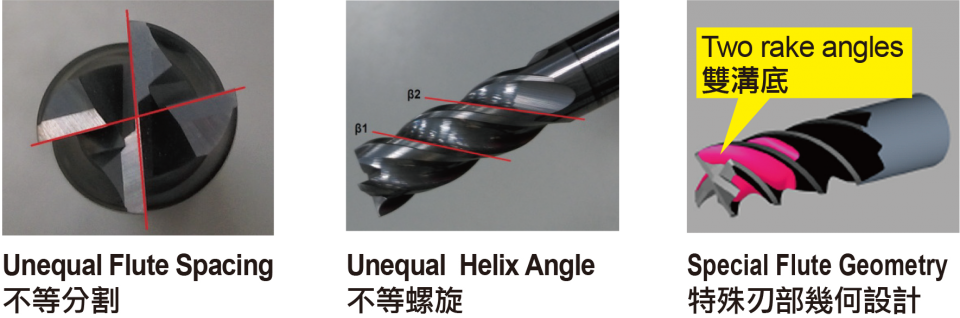

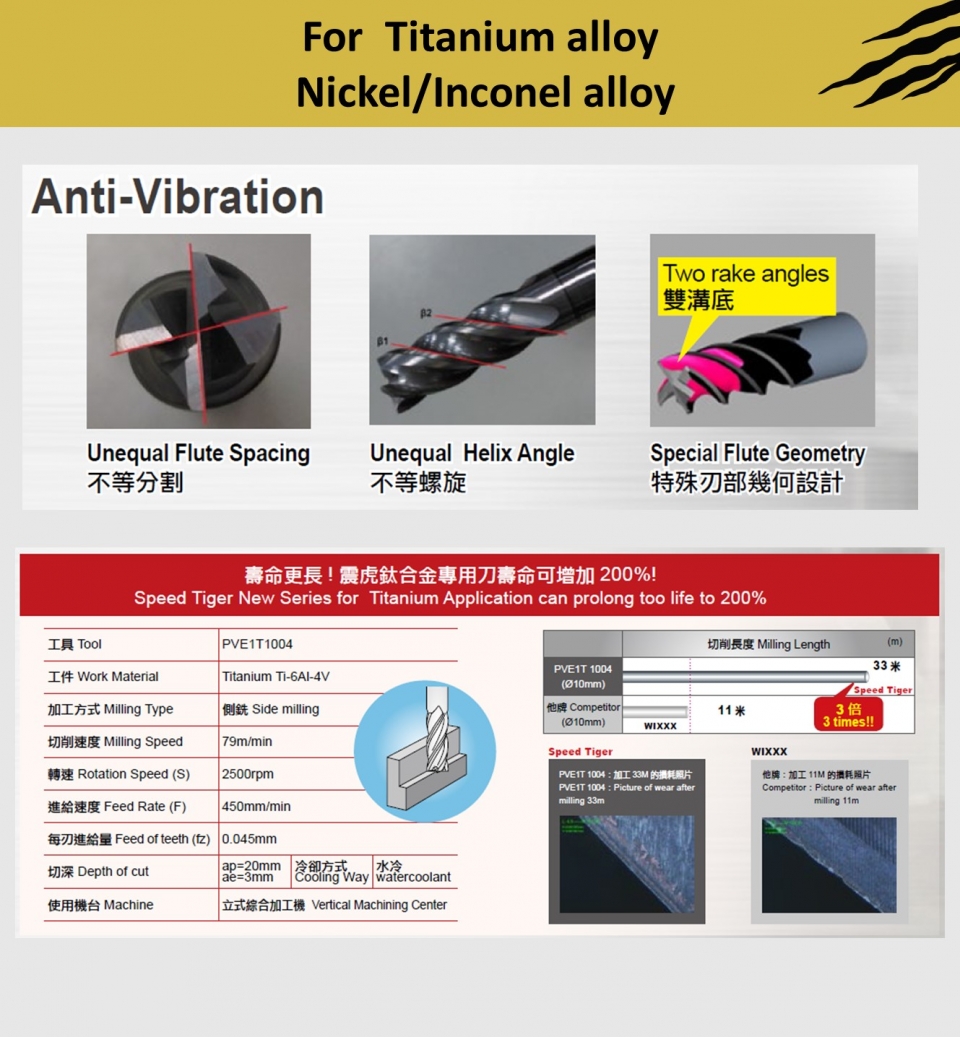

Anti-Vibration Design
PVD Coating

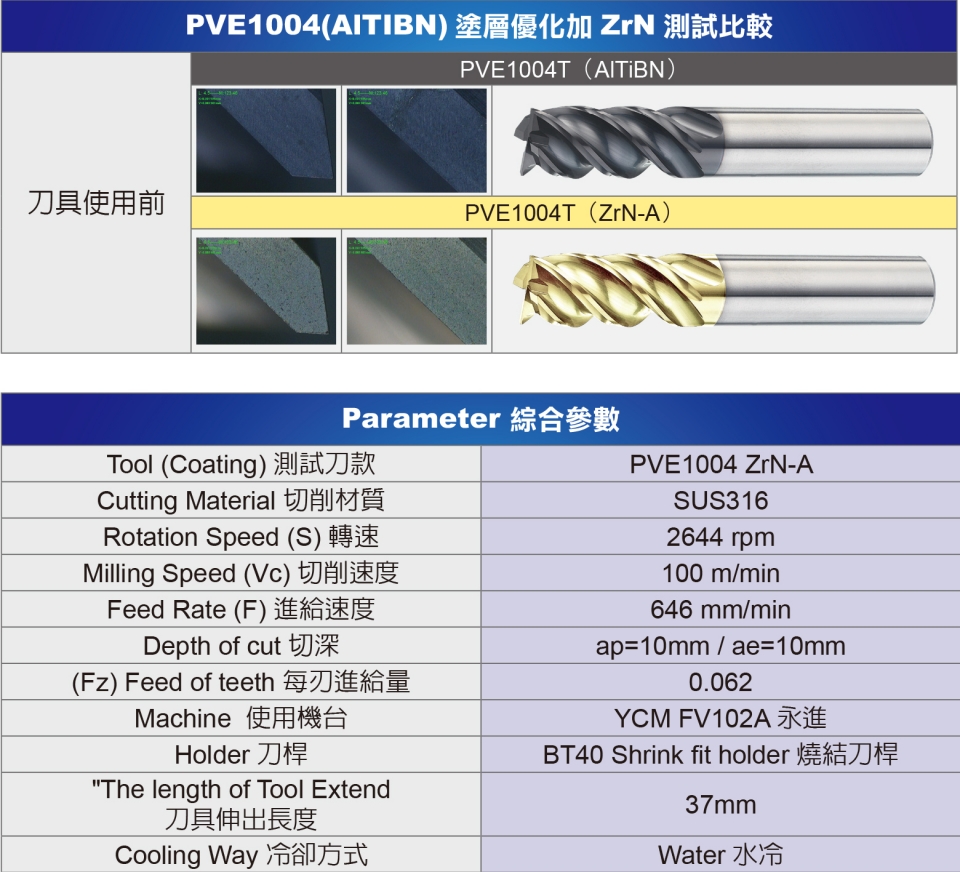

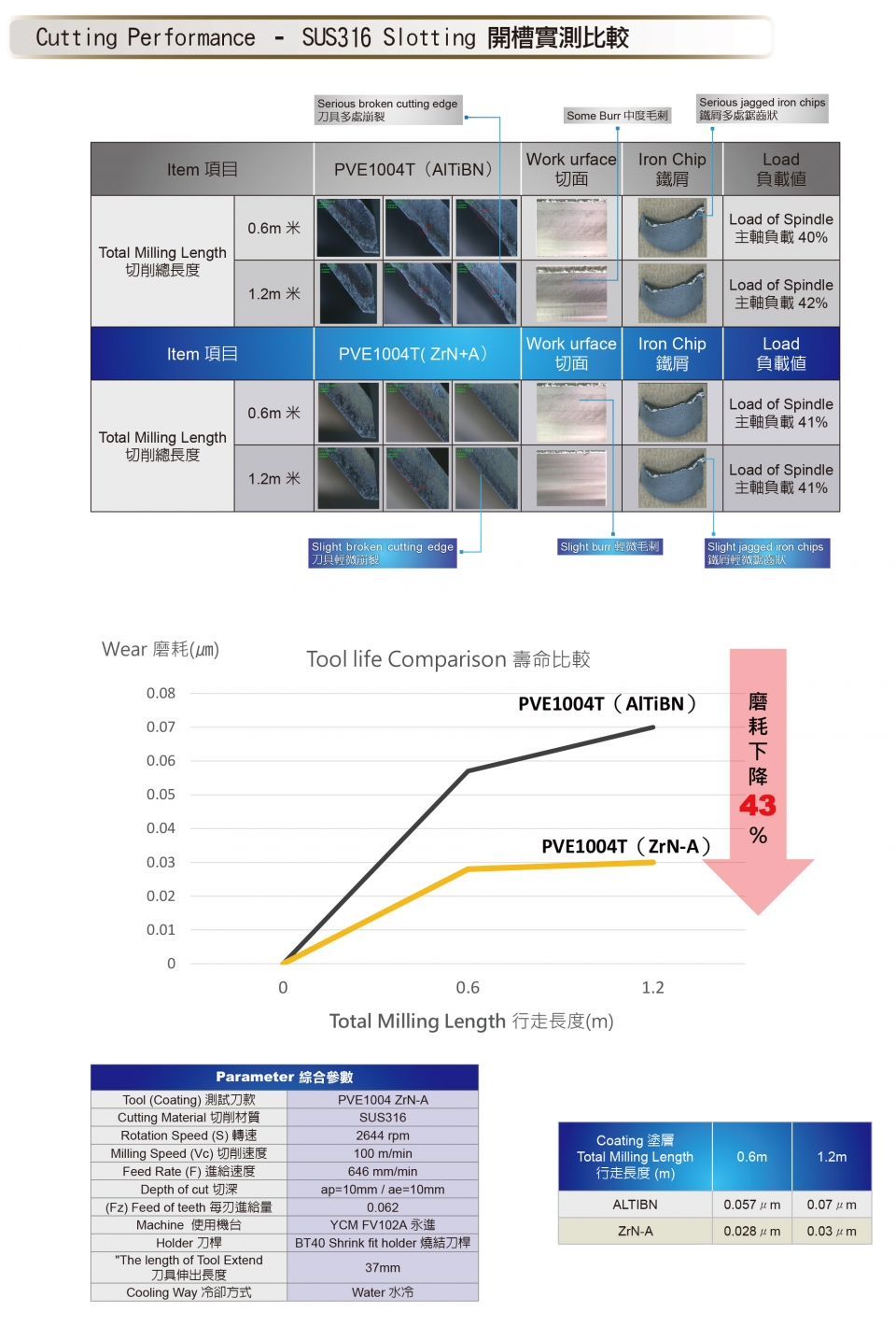

ZrN-A Coating (Zirconia + AlTiBN)- Block Resistance
- Good for Stainless steel cutting
Hardness: 2800~3000 HV
Coefficient of friction: 0.3
Oxidation Temp: 800~900°C
High performance coating(Light golden)

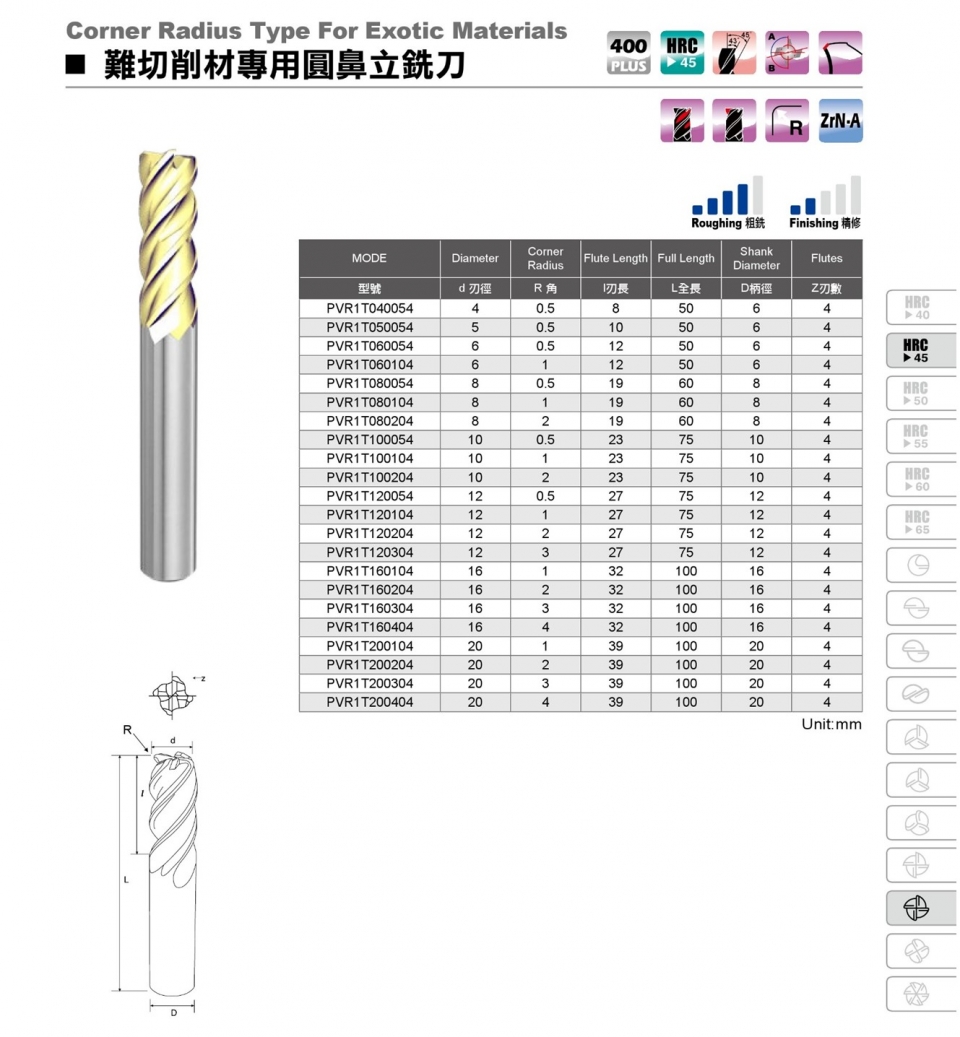

Dimension
Different Types are available, please click below link:
https://reurl.cc/rxqmby

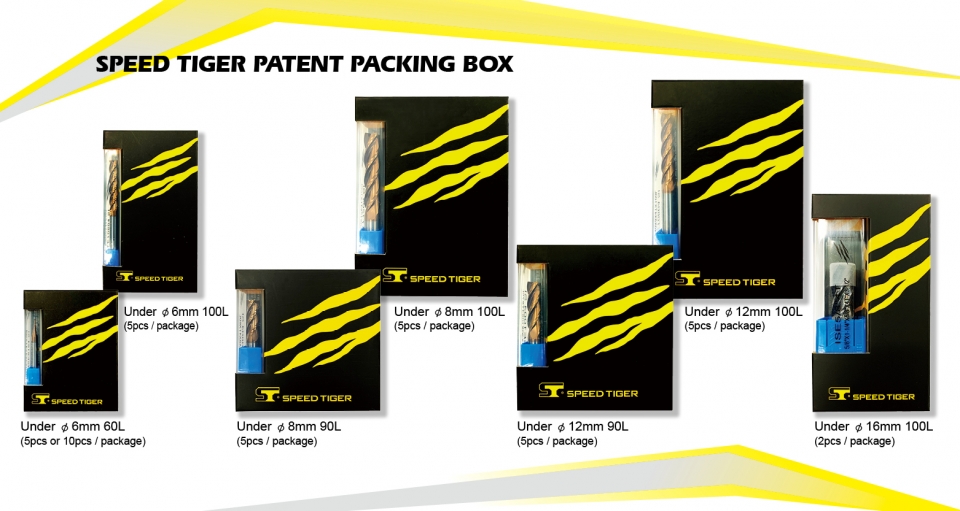

Package & Shipping
Delivery :
Generally it is 5-7 days if the goods are in stock.
It is 15-20 days if the goods are not in stock, it is according to quantity.
