5SN Carbide Drill For Stainless Steel
5xD Carbide Drill For Stainless Steel, Diameter：3mm~14mm, Coating：ZrN-A
-
Carbide Drill For Stainless Steel
►3SN ►5SN ►5SNC ►8SNC
♦Size Range: Ø3-14mm
♦Point Angle: 135º
Spec. Download
Cutting Condition Download
Feature

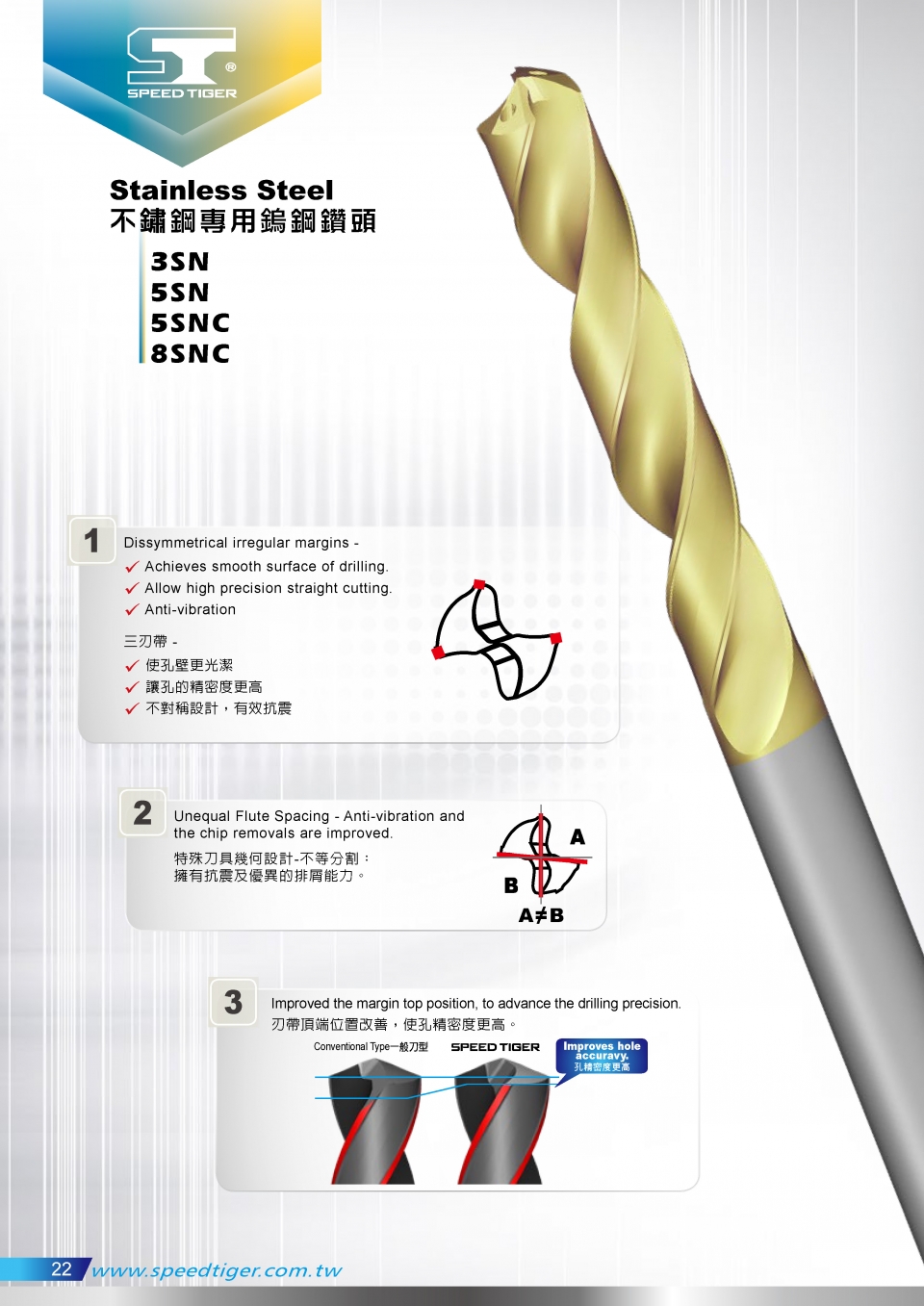

1.Dissymmetrical irregular margins -Achieves smooth surface of drilling.
Allow high precision straight cutting.
Anti-vibration
2. Unequal Flute Spacing - Anti-vibration and the chip removals are improved.
3. Improved the margin top position, to advance the drilling precision.

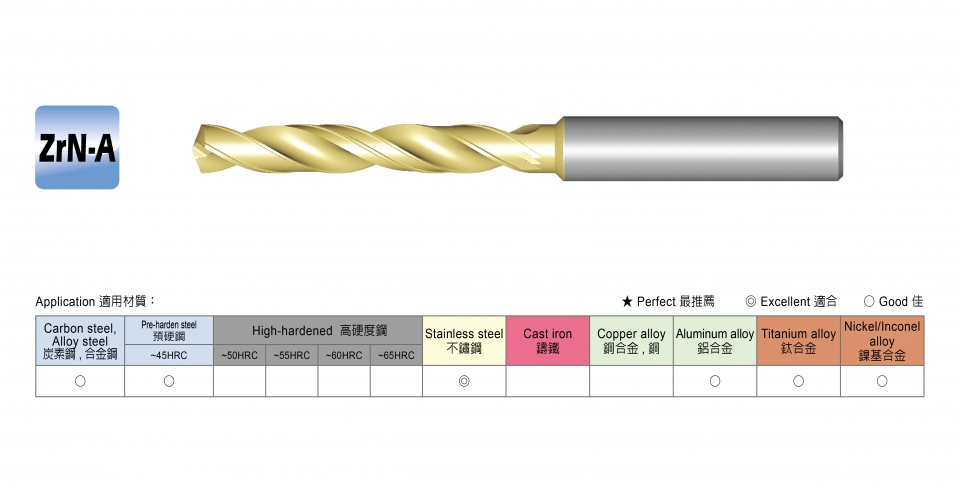

ApplicationCarbon steel Alloy steel Pre-harden steel
~45HRHigh-hardened
~50HRCStainless steel Cast iron Aluminum ally Titanium alloy
Inconel alloy○ ○ ○ ◎ ○ ○

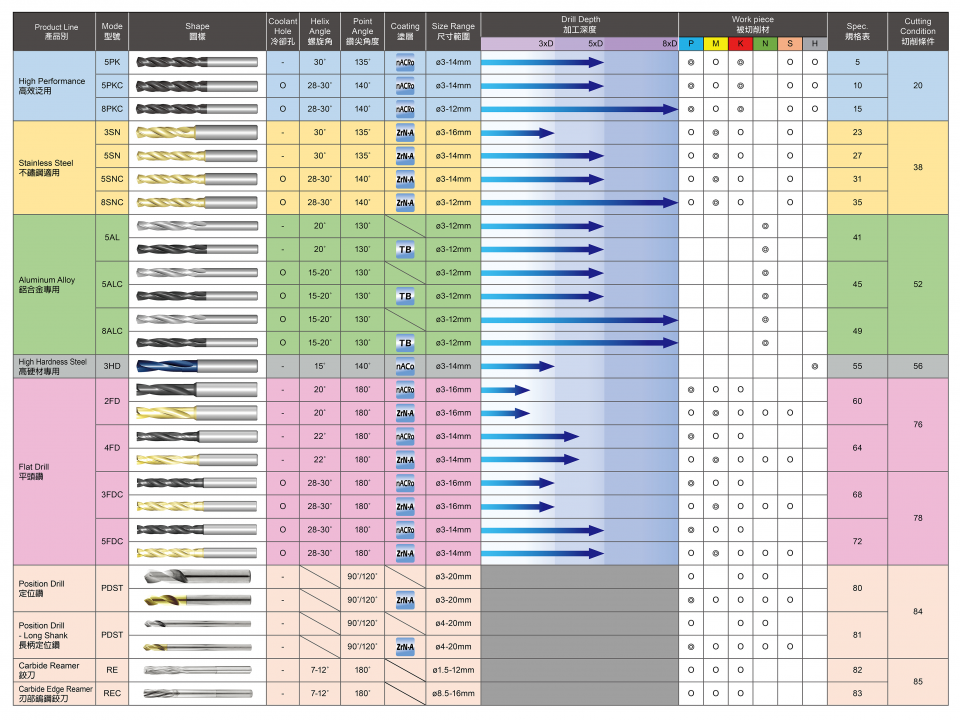

Carbide Drill Index
