APPLICATION

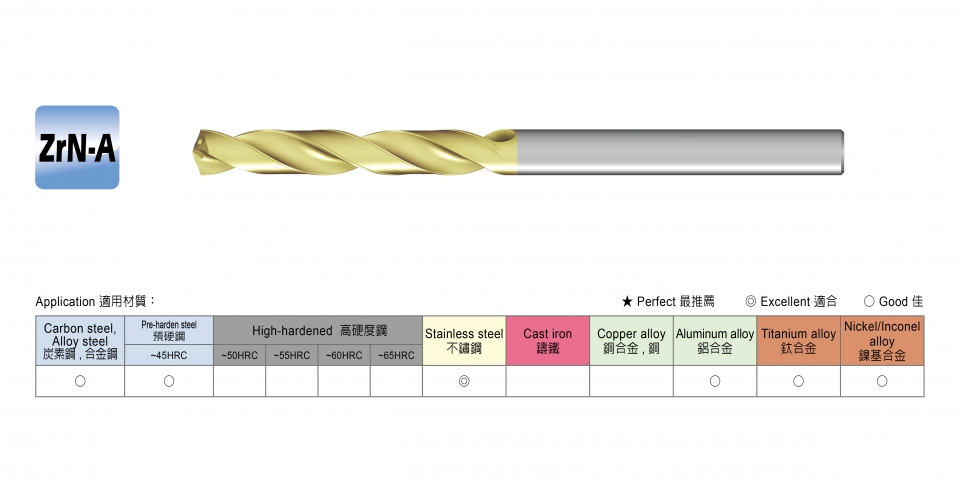

8SNC Carbide Drill For Stainless Steel
8xD Carbide Drill With Coolant Hole For Stainless Steel, Diameter：3mm~12mm, Coating：ZrN-A
-
Carbide Drill With Coolant Hole For Stainless Steel
►3SN ►5SN ►5SNC ►8SNC
♦Size Range: Ø3-12mm
♦Point Angle: 140º
Spec. Download
Cutting Condition Download

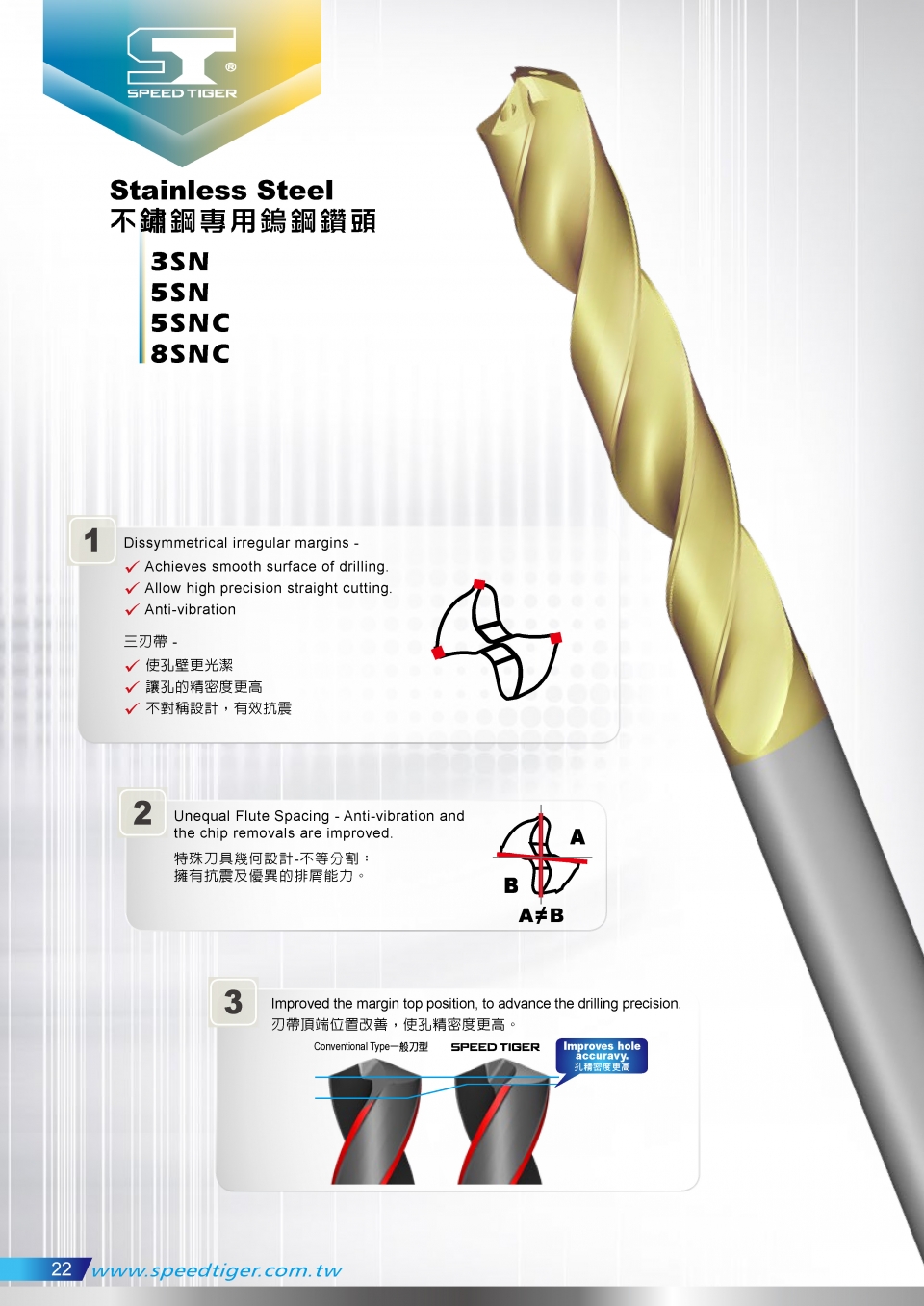

Feature
1.Dissymmetrical irregular margins -Achieves smooth surface of drilling.
Allow high precision straight cutting.
Anti-vibration
2. Unequal Flute Spacing - Anti-vibration and the chip removals are improved.
3. Improved the margin top position, to advance the drilling precision.
ApplicationCarbon steel Alloy steel Pre-harden steel
~45HRHigh-hardened
~50HRCStainless steel Cast iron Aluminum ally Titanium alloy
Inconel alloy○ ○ ○ ◎ ○ ○

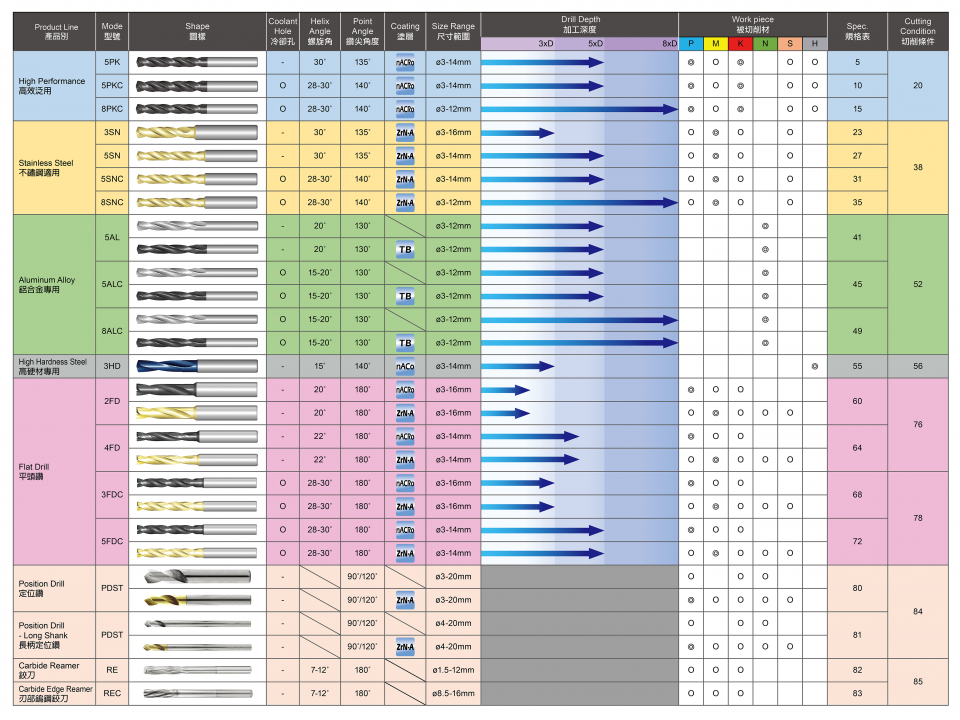

Carbide Drill Index
►Looking for others
►Carbide Drill Series E-catalogue Download
