APPLICATION
5ALC Carbide Drill For Aluminum Application
5xD Carbide Drill With Coolant Hole For Aluminum Application, Diameter：3mm~12mm, Coating： Uncoated / TB
-
Carbide Drill With Coolant Hole For Aluminum Application
►5AL ►5ALC ►8ALC
♦Size Range: Ø3-12mm
♦Point Angle: 130º
Spec. Download
Cutting Condition Download

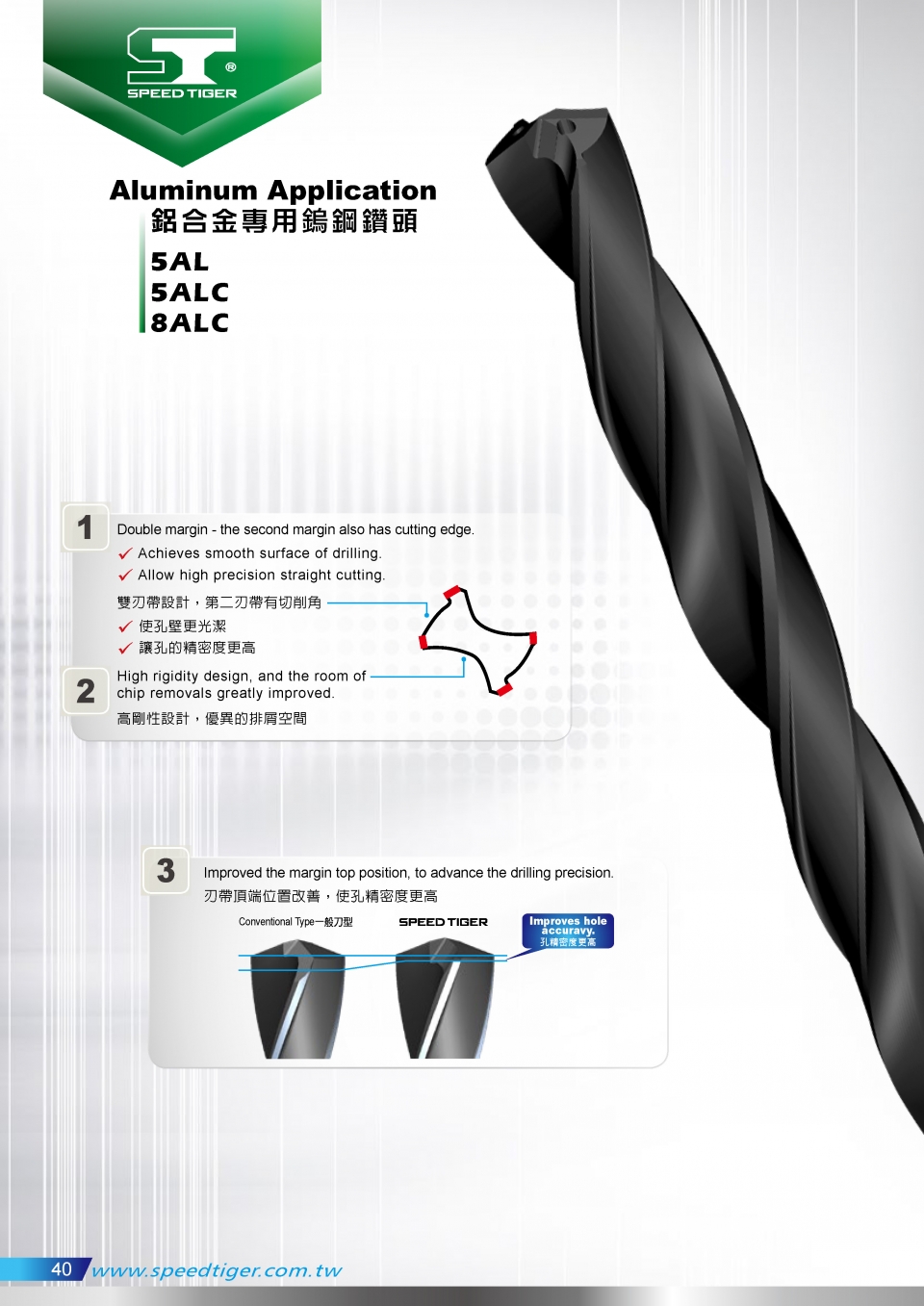

Feature
1. Double margin - the second margin also has cutting edge.
Achieves smooth surface of drilling.
Allow high precision straight cutting.
2. High rigidity design, and the room of chip removals greatly improved.
3. Improved the margin top position, to advance the drilling precision.

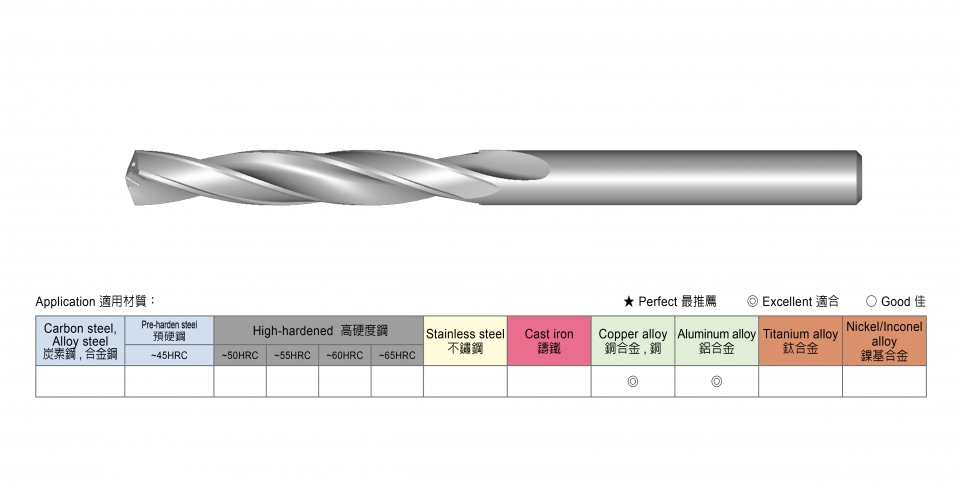

ApplicationCarbon steel Alloy steel Pre-harden steel
~45HRHigh-hardened
~50HRCStainless steel Cast iron Copper ally Aluminum ally Titanium alloy
Inconel alloy◎ ◎

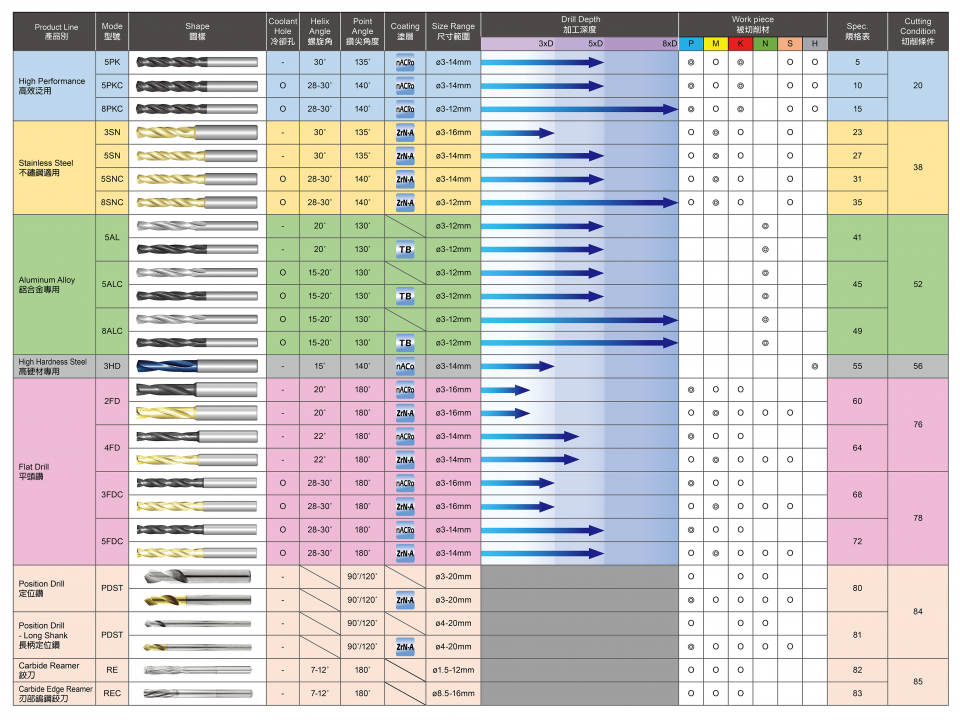

Carbide Drill Index
►Looking for others
►Carbide Drill Series E-catalogue Download
