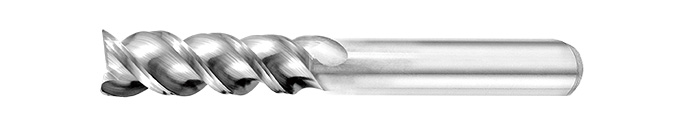

AUE High Feed U-End Mill Aluminum - 3 Flutes
Product Number：AUE
For Aluminum Series，Diameter：2.5mm~20mm，Coating：uncoated
-
Literature
Application
◎ ExcellentITEM 30HRC 30~40HRC 40~50HRC Carbon steel,
Alloy steelTitanium alloy Nickel/
Inconel alloyAluminium alloy Copper alloy AUE ◎ ○
○ Good
Cutting conditionCutting Video
Mode: AUE1003
Work material: AL6061
First Stage:
Machine: YCM-FV102A
Operation: Slotting
Vc: 251m/min
S: 8000rpm
fz: 0.125
F: 3000
ap: 10mm
ae: 10mm
Second Section:
Machine: MAKINO-V33
Operation: Pocketing
Vc: 251m/min
S: 8000rpm
fz: 0.14
F: 3400
ap: 20mm
ae: 5mm
Features
1. Special U-Type design:

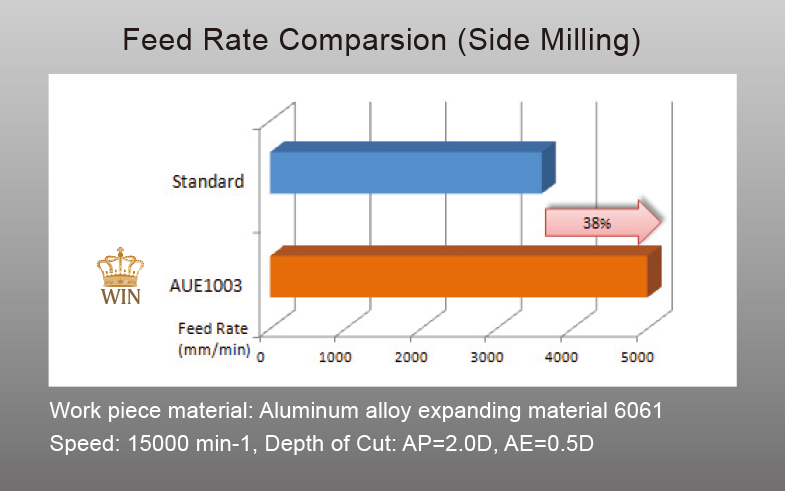

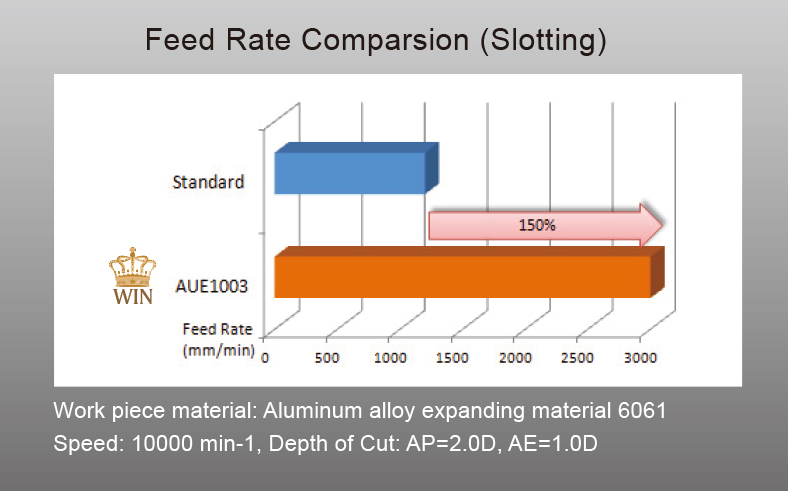

Material removal rate (MRR) and surface finishes are greatly improved due to effective chip removal at high rate
2. Strong tooth with double relief angles:
Excellent production rates become 100% possible due to the Improvement of tooth hardness.
3. Sharp aluminum alloy tooth design Applicable for roughing and finishing

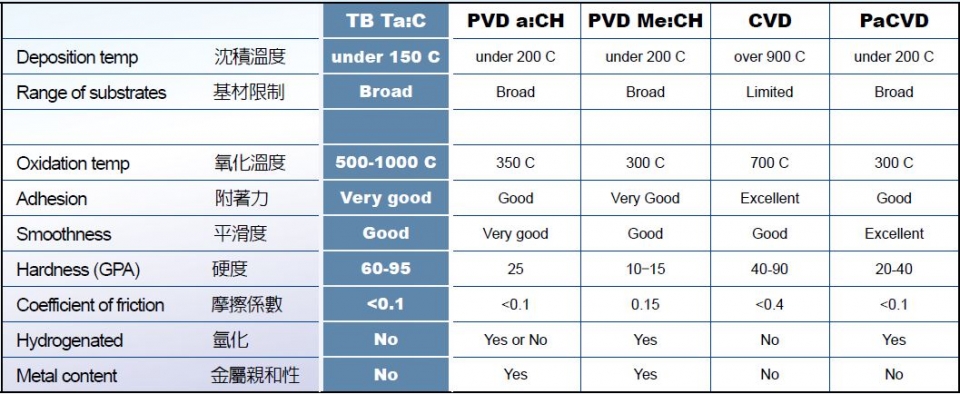

TB Coating (DLC) - Super high lubrication & Super low friction coefficient
- New PVD Nano Technology
- The tool is long life to be surprised because TB hardness to near the nature diamond coating
- Swiss & Speed Tiger Technological Cooperation.

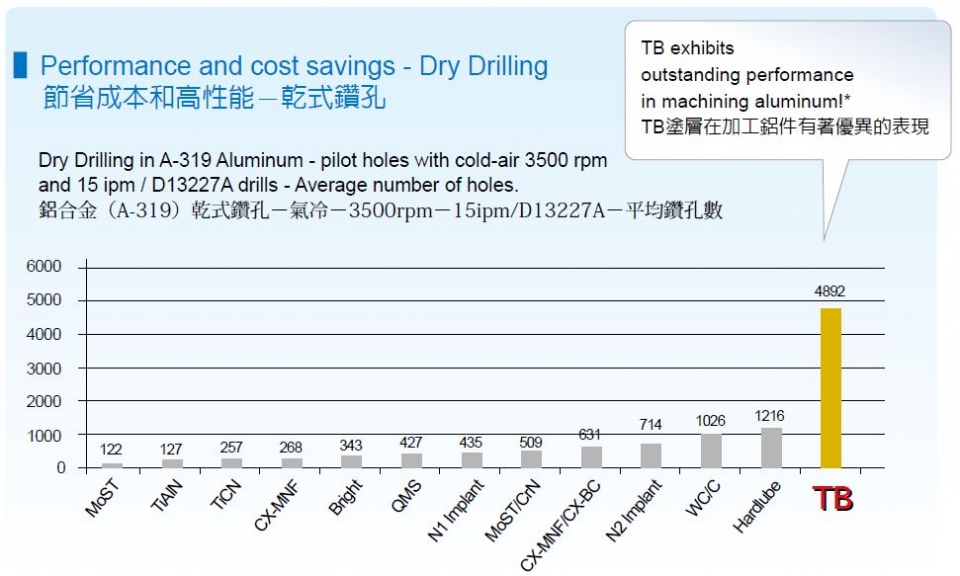

TETRABOND is an excellent choice for machining non-ferrous materials such as:- High silicon content aluminium alloys
- Aluminium magnesium matrix materials
- Titanium 6Al4V
- Epoxy resins
- Fibreglass and composites
- Plastic
- Graphite
- Brass and bronze
- Ceramics

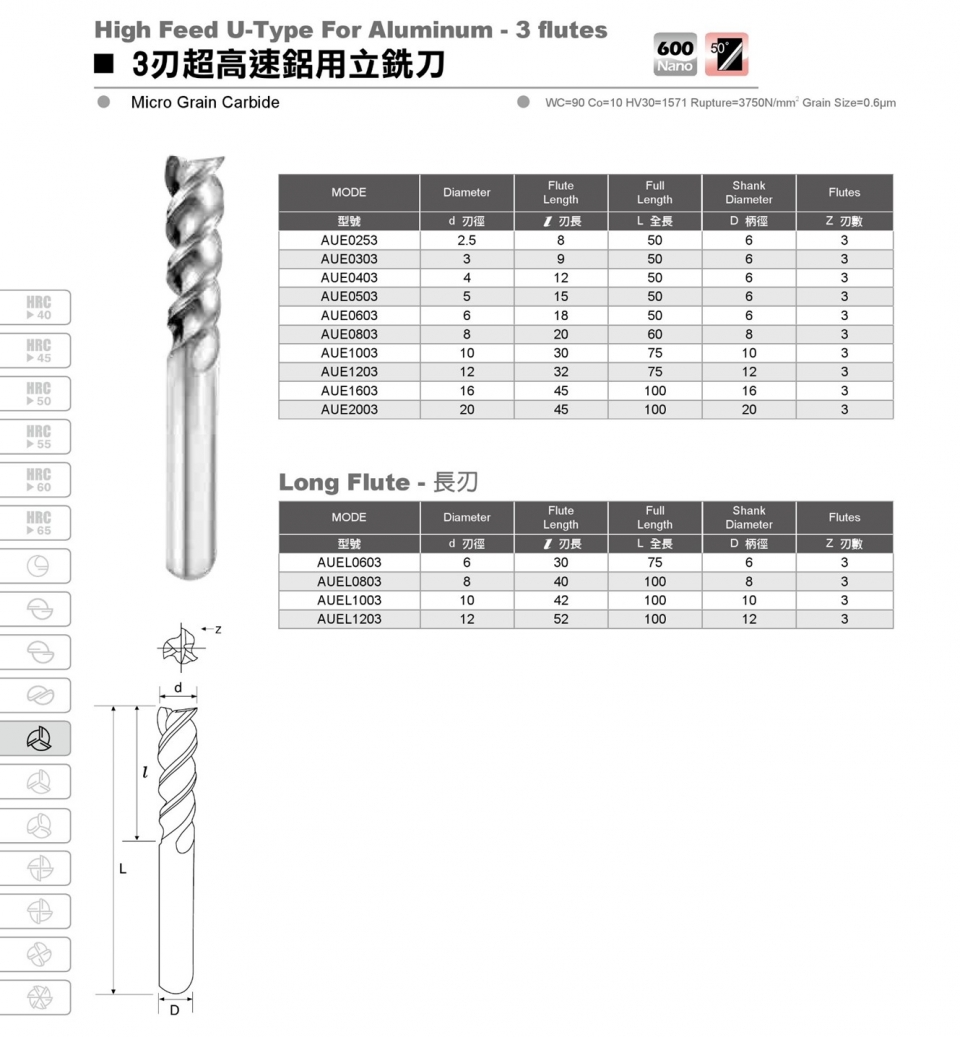

Dimension
Additional Information

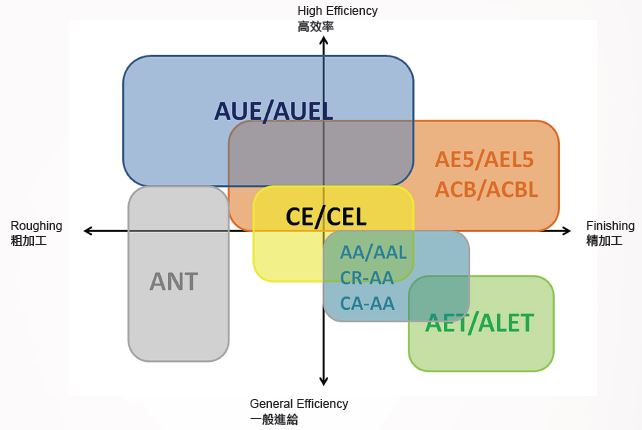

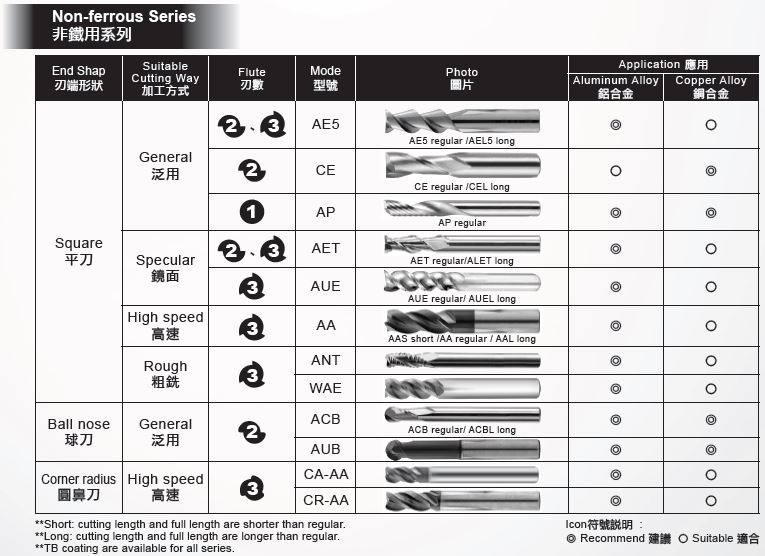

Overview of Non-ferrous series
Different Types are available, please click below link:
https://reurl.cc/z8nRKa
Package & Shipping
Delivery :
Generally it is 5-7 days if the goods are in stock.
It is 15-20 days if the goods are not in stock, it is according to quantity.
