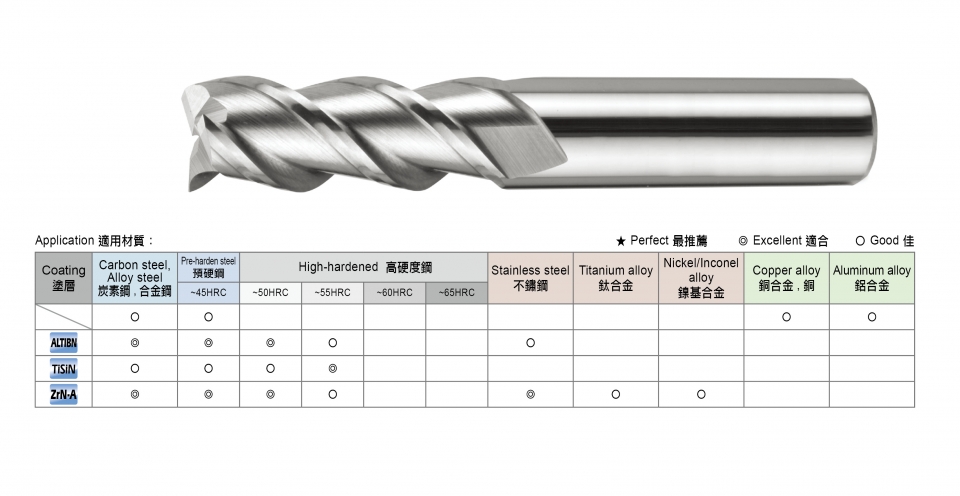

P-MPE/P-PE Square End Mill - 3 Flutes
Product Number：P-MPE/P-PE

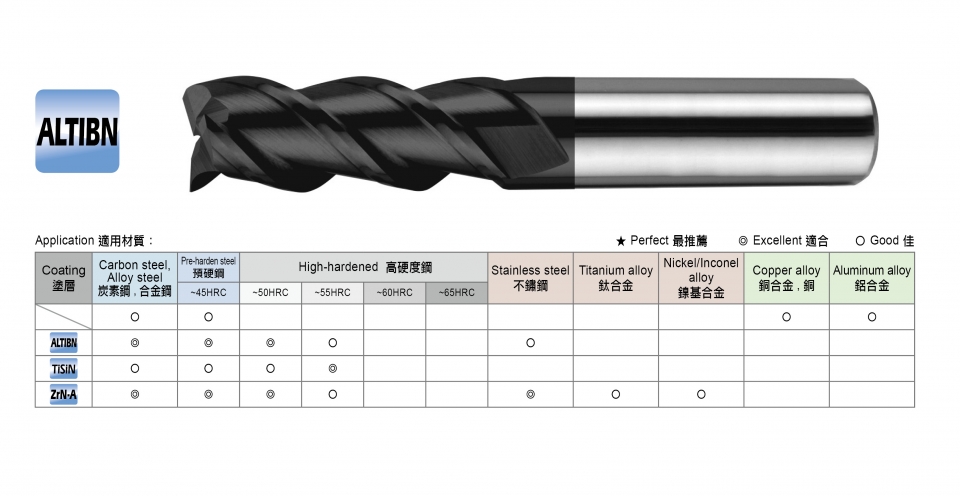

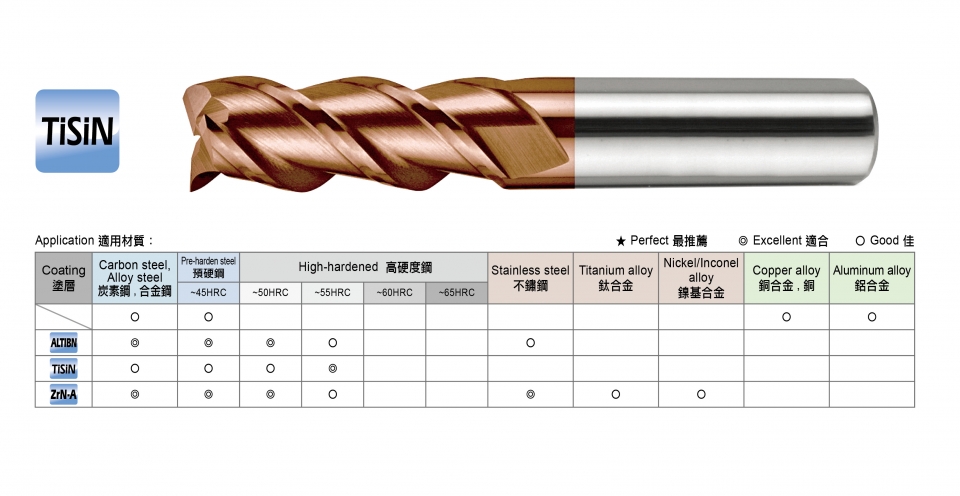

600 PLUS High Efficient End Mills Series, Diameter：1mm~20mm, Coating：Uncoated / ALTIBN / TiSiN / ZrN-A(Zirconia + AlTiBN)
-
詳細規格下載 Spec. Download
切削參數下載 Cutting Condition Download
600PLUS 高效能銑刀系列 單行本目錄下載 End Mills Series Catalogue Download
600 PLUS高效能泛用銑刀系列 600 PLUS High Performance End Mills Series for General Application
適用材料: ~50HRC / 鐵材 / 素碳鋼 / 鑄鐵 / 模具鋼 / 合金鋼 / 鋁合金 / 工具鋼 / 熱處理鋼 / 焊補鋼料
Application: ~50HRC / Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel.
主要特色 Main Feature:
1. 特殊刀型設計 + 強化刃口崩角設計，使刀具有最大的鋼性，同時擁有最大的有效排屑空間
Maximized rigidity, and chip removals are greatly improved due to special geometric design and reinforced design in cutting edges against chipping at corners.
2. 抑制顫振及噪音的效果更加明顯
Excellent performance of anti-vibration and noise.
3. 刀具塗層：震虎獨家高硬度專用塗層，有效提高刀具壽命跟加工表面精度
High hardness-used coating, effectively improves tool life and finishes.
